Name: Existing Sidewalks

Display Field: StreetName

Type: Feature Layer

Geometry Type: esriGeometryPolyline

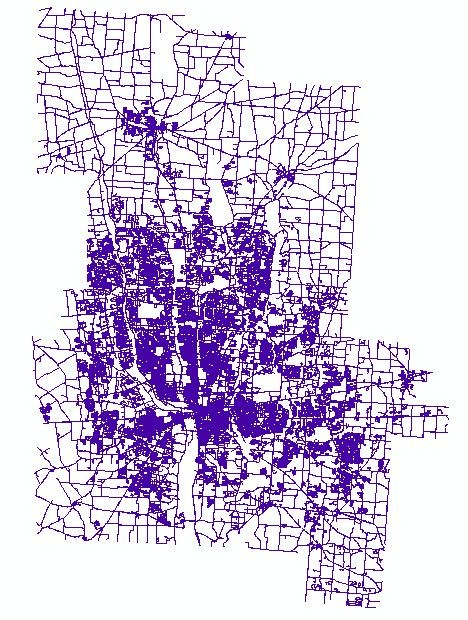

Description: This sidewalk dataset is a comprehensive transportation network of over 221,000 features representing existing sidewalks, existing crosswalks (marked/unmarked), and sidewalk gaps and matches the cardinality of unique Location-Based Reference System (LBRS) road centerline databases for Franklin, Delaware, Fairfield, and Licking Counties in Ohio. All data was digitized in Esri ArcGIS 10.2.1 software in the Ohio South State Plane (NAD 83), feet projection. This sidewalk inventory is intended for planning purposes only. TranSystems does not warrant the accurateness of the sidewalks or crosswalks depiected in this dataset. None of the sidewalk or crosswalk segments have been field verified. Every reasonable effort has been made to reflect the correct GIS segmentation of all sidewalks, crosswalks, and sidewalk gaps.MORPC will facilitate the maintenance of this data by engaging local governments.Status field domain - S=sidewalk, MC=marked crosswalk, UC=unmarked crosswalk, WP=worn path, MUP=multi-use path and X=no sidewalk

Service Item Id: 68cec1d804e0443d9083252c7d5c7473

Copyright Text: Mid-Ohio Regional Planning Commission TranSystems Corporation of Ohio City of Hilliard StreetScan

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1771125.919996217
YMin: 730355.3777363896
XMax: 1800898.750983652
YMax: 753856.8251559734
Spatial Reference: 102723  (3735)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [169, 0, 230, 125]
Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• FacilityID ( type: esriFieldTypeString, alias: Segment ID, length: 50 )
• SegID ( type: esriFieldTypeInteger, alias: LBRS Street ID )
• FacilityType ( type: esriFieldTypeString, alias: Facility Type, length: 4 )
• BufferZone ( type: esriFieldTypeString, alias: Buffer Zone, length: 4 )
• StreetName ( type: esriFieldTypeString, alias: Street Name, length: 50 )
• BegStreet ( type: esriFieldTypeString, alias: Beginning Street, length: 100 )
• EndStreet ( type: esriFieldTypeString, alias: Ending Street, length: 50 )
• Signalized ( type: esriFieldTypeString, alias: Signalized (MORPC), length: 2 )
• SurfaceType ( type: esriFieldTypeString, alias: Surface Type, length: 20 )
• Condition ( type: esriFieldTypeString, alias: Condition (MORPC), length: 50 )
• ADAComp ( type: esriFieldTypeString, alias: ADA Compliant (MORPC), length: 5 )
• InstallDate ( type: esriFieldTypeDate, alias: Install Date, length: 8 )
• Owner ( type: esriFieldTypeSmallInteger, alias: Owner )
• GISMaintAuth ( type: esriFieldTypeSmallInteger, alias: GIS Maintenance Authority )
• Width ( type: esriFieldTypeString, alias: Width (MORPC), length: 4 )
• Comments ( type: esriFieldTypeString, alias: Comments, length: 255 )
• County ( type: esriFieldTypeString, alias: County, length: 50 )
• Width2 ( type: esriFieldTypeDouble, alias: Width - New )
• FunctionalClass ( type: esriFieldTypeString, alias: Functional Class, length: 10 )
• PlanNo ( type: esriFieldTypeString, alias: Plan Number, length: 50 )
• OrigYear ( type: esriFieldTypeSmallInteger, alias: Year of Original Installation )
• ModYear ( type: esriFieldTypeSmallInteger, alias: Year Last Modified )
• ModType ( type: esriFieldTypeString, alias: Modification Type, length: 10 )
• MaintNotes ( type: esriFieldTypeString, alias: Maintenance Notes, length: 255 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• Priority ( type: esriFieldTypeInteger, alias: Priority )
• ProjNum ( type: esriFieldTypeInteger, alias: ProjNum )
• Shape_Length ( type: esriFieldTypeDouble, alias: Shape_Length )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
